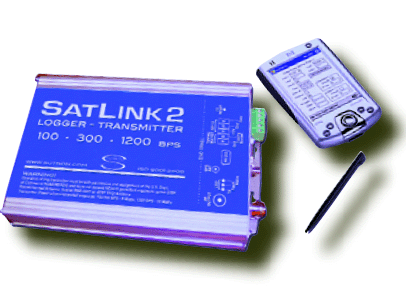

SATLINK2-V2 GOES TRANSMITTER WITH LOGGER SUPPORTS EUMETSAT
FEATURES
GOES transmissions continue for 1 month if GPS lost.
Antenna Pointing Calculator
SL2-V2 supports the NEW GOES V2.0 CHANNELS for future NESDIS assignments (double the number of channels).
Auto Power Set based on Antenna & Satellite
Built to operate for a decade, SatLink2 has the lowest life-cycle cost & the highest ROI of any GOES Transmitter available.
16 Independent Measurements: 4 Analog Inputs, SDI-12, Tipping Bucket Input & more
Intuitive data view makes set up & data collection incredibly straightforward.
USA-manufactured to exacting ISO 9001 quality standards, our satellite transmitters provide long-term, reliable operation in the harshest climates.
You'll collect & transmit data more accurately, using one of the lowest power consumption DCPs available!
Built-In Logger
USB port for PCs without RS-232 ports.
Satellite Certification: GOES High Data Rate 300/1200 bps & GOES CGMS International 100
Battery backup for the Real Time Clock for proper 'time tagged' logging at power-up before GPS resynchronization.
Front Panel Programming
Min/Max Processing
Processes Non-Linear Sensors - simply copy & paste a formula without any programming!
Two-Level Password Protection
BUILT-IN LOGGER
In many applications, SatLink2-V2 can function as a stand-alone DCP, thus saving about $2000 per station by eliminating the need for a separate datalogger.
When integrated into a station with another datalogger, SL2-V2 provides critical data redundancy & expansion options.
Front Panel Access with Separate Display & SD Card to Extend Data Handling & Programming
SL2-V2 Display includes SD Card slot for Log Downloads
Multiple Choices for Downloading SatLink Log (or Any Part of It) : all data since the last download, the entire log, or a range of dates.
Save SL2-V2 Setup on the SD Card to Setup another SL2-V2.
Increased Logging Capacity & Data Redundancy (leave Card inserted & SL2-V2 backs up Log to Card)
Voice for Messaging & Alarms in SL2-V2 in Enclosure with Modem
The SL2-V2 Model that provides Voice is the SATLINK2-V2 in ENCLOSURE WITH MODEM (# SL2-V2-ENC-DISP-2)
This SL2-V2 model has a special internal Sutron SL2-V2 Voice Modem (installed in the equipment) that allows the user to dial into a Satlink2-V2 station using a telephone.
A properly equipped 'speaking' SatLink2-V2 delivers measurements & diagnostics via voice. User dials the station, the station answers & provides current sensor data.
